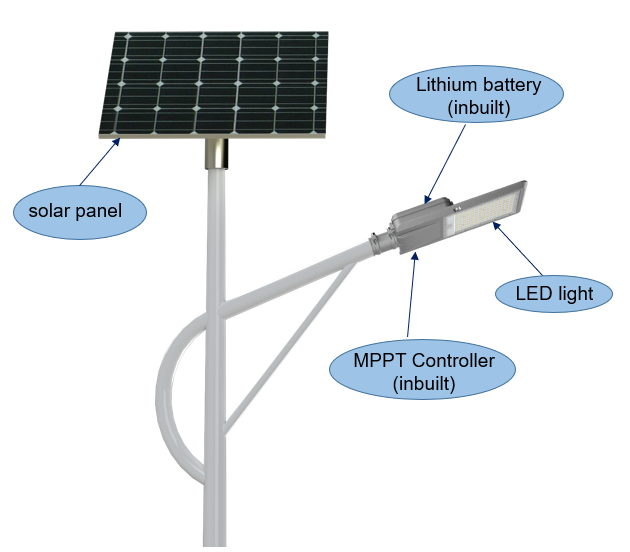

1.Structure

All in two solar street light has divided the solar lighting system into two parts. One is the solar panel, the other one is the complex of the LED, controller and battery. It's wireless, so customers just need to connect the solar panel and the complex, then the solar system will work automatically.

2.Features

* Integrates LED, controller and lithium battery in the led house;

* High lumen Bridgelux LED from USA, up to 180lm/w;

* Long lifespan LiFePo4 lithium battery, recycle time up to 2200s,

* 5 years free maintenance;

* MPPT solar charger, tracking efficiency up to 99.5%;

* Intelligent dimming control and wireless control system, remote control distance up to 15-20m.

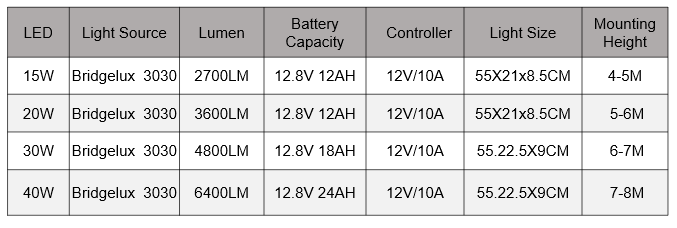

3.Data

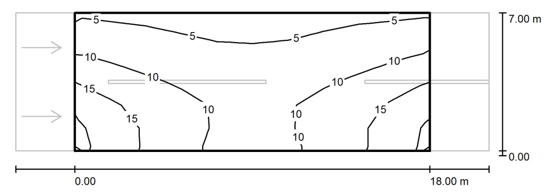

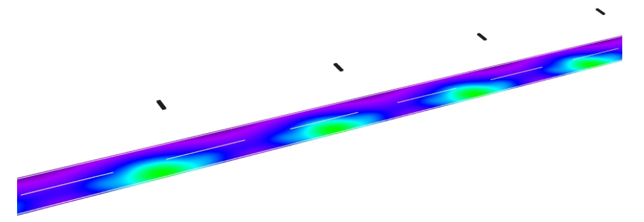

4.Lighting Simulation

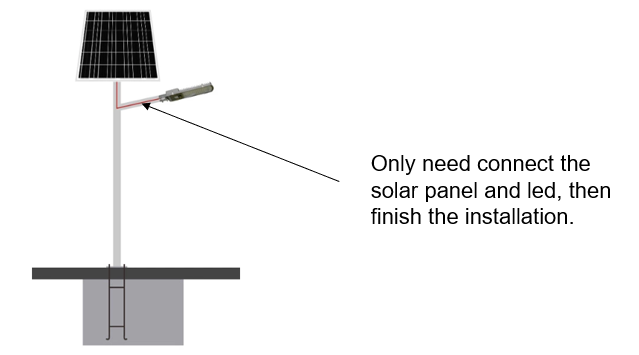

5.Installation

Installation procedure:

a. choose the right place and direction to install the light, make sure the solar panel can be fully shined at day;

b. Fix the solar panel on the pole, and adjust the direction;

c. Fix the led light on arm, and adjust the direction:

d. Connect the solar panel and led.
